HTTP/1.1 server protocol. More...
#include <httpserverconnection.h>

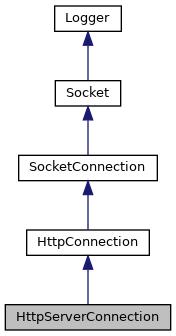

Inheritance diagram for HttpServerConnection:
Collaboration diagram for HttpServerConnection:
Public Types | |
| typedef std::multimap< std::string, std::string >::const_iterator | Hit |
Public Member Functions | |
| HttpServerConnection (const std::string &label, WebServerTask *task, int fd, const char *ip, uint16_t port) | |
| PollState | connected () final |
| Will be called when the connection is established. More... | |
| PollState | readData (char *buf, size_t len) final |
| Callback, called when data has arrived; len > 0. More... | |
| PollState | writeData () override |
| Callback, called when socket is writable. More... | |
| bool | hasQueryPar (const std::string &name) const |
| Return true if query string in current request has parameter name: | |
| void | eraseQueryPar (const std::string &name) |
| std::string | getQueryVal (const std::string &name) const |
| const std::multimap< std::string, std::string > & | currentQueryPars () const |
| std::map< std::string, std::string > | currentRequestCookies () const |
| std::string | cookieVal (const std::string &name) const |
| Return value of cookie if it exists, otherwise empty string. | |
| std::string | getHeaderVal (const std::string &name) const |
| std::pair< Hit, Hit > | getHeaderVals (const std::string &name) const |
| size_t | sendHttpResponse (const std::string &headers, const std::string &mime, const std::string &contents) |
| Async send response. Return length of what's to be sent. | |
| size_t | sendHttpResponseHeader (const std::string &headers, const std::string &mime, size_t content_length) |
| Async send response headers. Return length of what's to be sent: | |
| size_t | sendChunkedResponseHeader (const std::string &headers, const std::string &mime) |
| size_t | sendChunk (const std::string &content) |
| Send chunk. May only be used if we sent chunked headers. | |
| size_t | chunkedResponseComplete () |
| To notify that all chunks have been sent. | |
| bool | sendingChunkedResponse () const |
| const std::string & | currentUri () const |
| const std::string | currentFullUrl () const |
| const std::string & | currentQueryString () const |
| size_t | remainingPostData () const |
| Number of bytes left of the current HTTP POST. | |
| void | bufferPostData () |
| void | notifyWsHandshake () |
| Call this if the owner is to be notified after handshake: | |
| void | setOwner (Task *new_owner) override |
| std::string | currentRequest () const |
| Current request (first line and headers) in raw form. | |
 Public Member Functions inherited from HttpConnection | |
| unsigned int | httpVersion () |
| void | sendWsMessage (const std::string &msg) |
| void | sendWsBinary (const char *buf, size_t len) |
| void | startWsBinStream (size_t len) |
| void | startWsTxtStream (size_t len) |
| void | abortWsStream () |
| void | sendWsClose (uint16_t code, std::string msg) |
| void | streamWsResponse () |
| const unsigned char * | responseMask () const |
| size_t | wsIncomingBytesLeft () const |
| size_t | wsBytesReceived () const |
| size_t | wsOutgoingBytesLeft () const |
| size_t | wsBytesSent () const |
| bool | isWebsocket () const |
| Public Member Functions inherited from SocketConnection | |
| SocketConnection (const std::string &label, Task *owner, const std::string &hostname, uint16_t port, uint16_t iptype=0, struct addrinfo *local_addr=nullptr) | |
| void | enableTLS () |
| Notify that the connection will be encrypted (SSL). | |
| bool | is_tls () const |
| Return true if the connection will be encrypted (SSL). | |
| gnutls_session_t | cache_session () |
| Store SSL session in cache. | |
| void | insert_cached_session (gnutls_session_t &old_session) |
| Reuse cached SSL session. | |
| virtual void | connectionFailed (const std::string &err_msg) |
| Will be called if the connection couldn't be established. | |
| virtual void | closedByPeer () |
| virtual PollState | unexpectedData (char *buf, size_t len) |
| Peer has sent data when it wasn't supposed to. More... | |
| size_t | sendData (const char *buf, size_t len) |
| Try to send len bytes from the given buffer. Return the amount sent. More... | |
| void | asyncSendData (const char *buf, size_t len) |
| Send data to peer as soon as possible. More... | |
| void | asyncSendData (const std::string data) |
| Send data to peer as soon as possible. More... | |
| size_t | asyncBufferSize () const |
| Return number of bytes left to send after calling SocketConnection::asyncSendData. | |
| const std::string & | peerIp () const |
| Return peer's IP address. | |
| uint16_t | peerPort () const |
| Return peer's port number. | |
| void | dbgOn (bool b=true) |
| Enable debug output of data sent and received. | |
| bool | dbgIsOn () |
| Return true if socket debugging is enabled. | |
| Public Member Functions inherited from Socket | |
| Socket (const std::string &label, Task *owner, const std::string &hostname, uint16_t port) | |
| Socket (const std::string &label, Task *owner, int fd) | |
| Task * | owner () const |
| Return task owning the socket. | |
| std::string | hostname () const |
| Return name of the host to which the socket is supposed to connect. | |
| uint16_t | port () const |
| Return port number to which the socket is supposed to connect. | |
| PollState | state () const |
| Return current socket state. | |
| int | getUnixDomainPeer () const |
| Return the peer socket descriptor. More... | |
| virtual std::string | cacheLabel () |
| Return the socket's cache group, or an empty string. More... | |
| int | id () const |
| Return unique connection ID if connected. More... | |
| void | setExpiry (double s) |
| Set a time to live for the socket. More... | |
| bool | hasExpired (const TimePoint &when) const |
| Return true if the given TimePoint is after the socket's expiry. | |
| const char * | localIp () const |
| Return local IP address in static buffer. | |
| struct addrinfo * | getAddressInfo (uint16_t iptype=0) |
| Perform DNS lookup of remote host. | |
| Public Member Functions inherited from Logger | |
| Logger (std::string label) | |
| std::string | label () const |
| Return the object's log label. | |
| void | resetLabel (const std::string &new_label) |
| Modify the object's log label. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from SocketConnection | |
| static uint64_t | totBytesSent () |
| Number of bytes sent by current thread. | |
| static uint64_t | totBytesReceived () |
| Number of bytes recieved by current thread. | |
| static void | resetByteCounter () |
| Reset counter for SocketConnection::totBytesSent and SocketConnection::totBytesReceived. | |
| Static Public Member Functions inherited from Socket | |
| static const char * | getIp (int fd, uint16_t *port=nullptr, bool peer=true) |
| Return IP address of connected socket in static buffer. More... | |
| static const char * | getIp (struct sockaddr *address, uint16_t *port=nullptr) |
| Return IP address in static buffer. | |
| static const char * | getIp (struct addrinfo *address, uint16_t *port=nullptr) |
| Return IP address in static buffer. | |
| Static Public Member Functions inherited from Logger | |
| static void | setLogFile (std::ostream &stream) |
| Set global log destination. More... | |
| static void | reopenLogFile (const std::string &filename) |
| If current log is a file (ofstream), reopen it with new filename: | |
| static void | setLogLimit (unsigned int loglines=0, unsigned int warnlines=0, unsigned int errlines=0) |
| Set max number of lines of info/warn/err log. More... | |
| static void | sayTime (std::ostream &stream) |
| Write current local time to the given stream. | |
| static bool | inError () |
| Return true if any error has been logged (globally since start) | |
| static std::ostream & | err_log (const std::string &label) |
| Write a line of error log. More... | |
| static std::ostream & | warn_log (const std::string &label) |
| Write a line of warning log. More... | |
| static std::ostream & | log (const std::string &label) |
| Write a line of info log. More... | |
| static void | flushLogFile () |
| static void | pauseLogging () |
| Disable all log output until next call to Logger::setLogFile. | |
| static double | secondsSince (const TimePoint &t) |
| static double | secondsTo (const TimePoint &t) |
| static int64_t | msSince (const TimePoint &t) |
| static int64_t | msTo (const TimePoint &t) |
| static bool | hasExpired (const TimePoint &t) |
| Return true if current time is after the given TimePoint. | |
| static TimePoint | timeNow () |
| Return current time. | |
| static TimePoint | timeAfter (double s) |
| Return current time plus s seconds. | |
| static TimePoint | timeMax () |
| Return a very distant time. | |
| static std::chrono::microseconds | toUs (double t) |
| Convert s (seconds) to std::chrono::microseconds. | |
| static std::string | dateString (time_t t=0) |
| Return local time, formatted as 2023-10-14T09:38:47+0200. | |
| static std::string | dateString2 (time_t t=0) |
| Return local time, formatted as Sat, 14 Oct 2023 09:38:47. | |
| static std::string | createHashKey (unsigned int length=20) |
| Return a random string. More... | |
| Protected Member Functions inherited from HttpConnection | |
| HttpConnection (const std::string &label, Task *owner, const std::string &hostname, uint16_t port, uint16_t iptype=0, struct addrinfo *local_addr=nullptr) | |
| HttpConnection (const std::string &label, Task *owner, int fd, const char *ip, uint16_t port) | |
| void | set_http_version (unsigned int major, unsigned int minor) |
| void | send_ws_handshake (const std::string &key) |
| void | send_ws_bin_header (size_t len) |
| void | send_ws_txt_header (size_t len) |
| void | send_ws_pong () |
| PollState | incoming_ws_data (const char *buf, size_t len) |
| PollState | incoming_ws_header (const char *buf, size_t len) |
| PollState | wsReadData (const char *buf, size_t len) |
| PollState | wsWriteData () |
| Protected Member Functions inherited from SocketConnection | |
| SocketConnection (const std::string &label, Task *owner, int fd, const char *ip, uint16_t port) | |
| PollState | tellOwner (const std::string &msg) |
| Protected Member Functions inherited from Socket | |
| virtual PollState | checkReadBlock () |
| This will be called regularly on READ_BLOCKED sockets to check if the block can be lifted. More... | |
| void | setWantToSend () |
| Notify intention of sending large amounts of data. More... | |
| int | socket () const |
| Return file descriptor. | |
| void | closeMe () |
| Tell the network engine that the connection should be closed. | |
| void | createNonBlockingSocket (struct addrinfo *addressEntry, struct addrinfo *localAddr=nullptr) |
| Create socket and initiate the connection. More... | |
| bool | setNonBlocking (int fd) |
| Set socket as non-blocking. | |
| bool | inError () const |
| Return true if the socket has encountered a fatal error. | |
| Protected Member Functions inherited from Logger | |
| std::ostream & | errno_log () const |
| Write a line of error log after a failed system call has set the global errno to a non-zero value. More... | |
| std::ostream & | err_log () const |
| Write a line of error log. More... | |
| std::ostream & | warn_log () const |
| Write a line of warning log. More... | |
| std::ostream & | log () const |
| Write a line of info log. More... | |
| std::ostream & | dbg_log () const |
| Write a line of debug log. More... | |
| Static Protected Member Functions inherited from Socket | |
| static bool | isTempError () |
| Return true unless last syscall encountered a fatal error. | |
| static int | closeSocket (int fd) |
| Close a file descriptor. | |
| static bool | socketInError (int fd) |
| Return true if the file descriptor has encountered a fatal error. | |
| Protected Attributes inherited from HttpConnection | |
| std::string | buffer |
| bool | is_websocket = false |
Detailed Description
HTTP/1.1 server protocol.
This class implements a small subset of the HTTP/1.1 server protocol. When a new HTTP GET or POST request is made, the owner task's method newGetRequest or newPostRequest will be called. If a websocket connection is made, the owner task's method newWsRequest will be called.
To use this class, you must derive from WebServerTask and implement at least one of newGetRequest, newPostRequest, or newWsRequest.
Member Function Documentation
◆ bufferPostData()
|
inline |
The owner task may call this in the newPostRequest handler and return HttpState::READING_POST_DATA. In that case, the owner task will not get partialPostData calls, but only a lastPostData call when the user has posted all data.
Hint: Check first that remainingPostData() isn't too large.
◆ connected()
|
inlinefinalvirtual |
Will be called when the connection is established.
Override it to start sending data when the connection is ready.
If a connection couldn't be established, SocketConnection::connectionFailed will be called instead. You must not return PollState::CONNECTING.
Reimplemented from SocketConnection.
◆ getHeaderVal()
| std::string HttpServerConnection::getHeaderVal | ( | const std::string & | name | ) | const |
If HTTP headers in current request has attribute "name", return the value of its first occurrence. Otherwise return empty string. Note: use only lower-case letters in "name", e.g. "content-length".
◆ getQueryVal()
| std::string HttpServerConnection::getQueryVal | ( | const std::string & | name | ) | const |
If query string in current request has parameter "name", return the value of its first occurrence. Otherwise return empty string.
◆ readData()
|
finalvirtual |
Callback, called when data has arrived; len > 0.
May be called in states READ, READ_WRITE. Override this method to handle the data. Return value should be the new state.
The buffer is owned by the implementation. However, you are allowed to modify the contents of the buffer and you may also use it in the asyncSendData call.
Reimplemented from SocketConnection.
◆ sendChunkedResponseHeader()
| size_t HttpServerConnection::sendChunkedResponseHeader | ( | const std::string & | headers, |
| const std::string & | mime | ||
| ) |
Async send response headers with the "chunked" encoding. Return length of what's to be sent.
◆ setOwner()
|
overridevirtual |
Override this to make sure we're not transfered to an owner Task that is not a WebServerTask (or subclass).
Reimplemented from HttpConnection.
◆ writeData()
|
overridevirtual |
Callback, called when socket is writable.
May be called in states PollState::WRITE and PollState::READ_WRITE. Override it to write data. Return value should be the new state. Do not return PollState::WRITE or PollState::READ_WRITE except after a write operation where all data couldn't be sent immediately.
Reimplemented from SocketConnection.
The documentation for this class was generated from the following files:
- src/http/httpserverconnection.h
- src/http/httpserverconnection.cpp
