API for HTTP servers. More...

#include <webservertask.h>

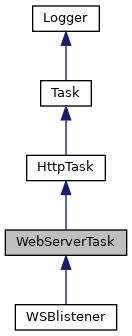

Inheritance diagram for WebServerTask:

[legend]

Collaboration diagram for WebServerTask:

[legend]

Public Member Functions
	WebServerTask (const std::string &name, const TaskConfig &cfg=TaskConfig())

double	start () override

std::string	headers (const std::string &code)

std::string	setCookie (const std::string &name, const std::string &val, long expiry=0, const std::string &path="/", std::string domain="") const
	Return a string that may be inserted into the HTTP response headers. More...

virtual HttpState	newGetRequest (HttpServerConnection *, const std::string &)

virtual size_t	sendResponseData (HttpServerConnection *, size_t)

virtual HttpState	newPostRequest (HttpServerConnection *conn, const std::string &uri)

virtual bool	partialPostData (HttpServerConnection conn, const char buffer, size_t len)
	Retrieve part of a post message from client. More...

virtual HttpState	lastPostData (HttpServerConnection conn, const char buffer, size_t len)
	Retrieve last part of a post message from client.

virtual bool	newWsRequest (HttpServerConnection *conn, const std::string &uri)
	Request from client for a websocket upgrade. More...

virtual void	wsHandshakeFinished (HttpServerConnection *conn, const std::string &uri)

virtual HttpState	preflightRequest (HttpServerConnection *, const std::string &)
	Override this to implement a response to a preflight (OPTIONS) request.

void	connAdded (SocketConnection *conn) override

void	connRemoved (SocketConnection *conn) override

void	setFixedHeaders (const std::string &hdr)
	One or more HTTP response header lines that always should be sent. More...

SocketConnection *	newClient (int fd, const char ip, uint16_t port, ServerSocket ) final

std::string	webRoot () const

void	setWebRoot (const std::string &path)

void	newWorkerChannel (SocketReceiver *srv, unsigned int chan) override

Public Member Functions inherited from HttpTask
	HttpTask (const std::string &name)

virtual bool	wsTextMessage (HttpConnection *, const std::string &msg)
	Incoming websocket text message. Return false to kill connection.

virtual bool	wsBinMessage (HttpConnection *, const std::string &msg)
	Incoming websocket binary message. Return false to kill connection.

virtual bool	wsBinHeader (HttpConnection *, size_t)
	Called when headers of a binary message are read. More...

virtual bool	wsTextHeader (HttpConnection *, size_t)
	Called when headers of a text message are read. More...

virtual bool	wsBinData (HttpConnection , const char , size_t)
	Incoming partial websocket binary message. More...

virtual bool	wsTextData (HttpConnection , const char , size_t)
	Incoming partial websocket text message. More...

virtual size_t	sendWsData (HttpConnection *conn)

Public Member Functions inherited from Task
	Task (const std::string &task_name)
	Create a task with the given name. More...

virtual	~Task ()

virtual double	timerEvent ()

void	resetTimer (double s)
	Run timerEvent after s seconds instead of previous value.

bool	finishedOK () const
	Return true if the task has finished normally. More...

bool	wasKilled () const
	Return true if the task is finished and was aborted by another task. More...

bool	wasError () const
	Return true if the task terminated with an error. More...

bool	wasTimeout () const
	Return true if the task terminated with a timeout. More...

bool	hasStarted () const

void	killChildTaskWhenFinished ()

virtual bool	adoptConnection (Socket *conn)

virtual void	serverAdded (ServerSocket *)

virtual void	serverRemoved (ServerSocket *)

std::string	result () const
	To get the "result" of the task after it has finished.

std::set< Socket * >	getMyConnections () const
	Return all current connections.

bool	isActive (Socket *conn) const
	Return true if the connection still exists.

void	wakeUp ()
	Restart all idle connections.

bool	wakeUpConnection (SocketConnection *s)
	If s is idle, restart it and return true. Otherwise return false.

void	cancelConnection (SocketConnection *s)
	Terminate and remove a connection.

std::string	message () const
	Return the current (outgoing) message.

bool	startObserving (Task *to)

void	executeHandler (Task *receiver, const std::string &message)

double	elapsed () const
	Return number of seconds since the task was started. More...

virtual Task *	createWorkerTask (unsigned int wno)

virtual void	finishWorkerTask (unsigned int)

virtual void	workerMessage (SocketReceiver , const char buf, size_t len)
	Called if parent/worker sends a message through a SocketReceiver:

virtual PollState	connectionReady (SocketConnection *)

virtual PollState	msgFromConnection (SocketConnection *, const std::string &)

uint64_t	bytesSent () const
	Number of bytes sent through SocketConnection objects owned by me.

uint64_t	bytesReceived () const
	Number of bytes received through SocketConnection objects owned by me.

void	resetByteCount ()
	Reset the values for the methods Task::bytesSent and Task::bytesReceived.

void	notifyBytesSent (uint64_t n)
	Notify the task that data has been sent on its behalf. More...

void	notifyBytesReceived (uint64_t n)
	Notify the task that data has been received on its behalf. More...

Public Member Functions inherited from Logger
	Logger (std::string label)

std::string	label () const
	Return the object's log label.

void	resetLabel (const std::string &new_label)
	Modify the object's log label.

Static Public Member Functions
static std::string	corsHeader (HttpServerConnection *conn, const std::string &domain)

Static Public Member Functions inherited from Logger
static void	setLogFile (std::ostream &stream)
	Set global log destination. More...

static void	reopenLogFile (const std::string &filename)
	If current log is a file (ofstream), reopen it with new filename:

static void	setLogLimit (unsigned int loglines=0, unsigned int warnlines=0, unsigned int errlines=0)
	Set max number of lines of info/warn/err log. More...

static void	sayTime (std::ostream &stream)
	Write current local time to the given stream.

static bool	inError ()
	Return true if any error has been logged (globally since start)

static std::ostream &	err_log (const std::string &label)
	Write a line of error log. More...

static std::ostream &	warn_log (const std::string &label)
	Write a line of warning log. More...

static std::ostream &	log (const std::string &label)
	Write a line of info log. More...

static void	flushLogFile ()

static void	pauseLogging ()
	Disable all log output until next call to Logger::setLogFile.

static double	secondsSince (const TimePoint &t)

static double	secondsTo (const TimePoint &t)

static int64_t	msSince (const TimePoint &t)

static int64_t	msTo (const TimePoint &t)

static bool	hasExpired (const TimePoint &t)
	Return true if current time is after the given TimePoint.

static TimePoint	timeNow ()
	Return current time.

static TimePoint	timeAfter (double s)
	Return current time plus s seconds.

static TimePoint	timeMax ()
	Return a very distant time.

static std::chrono::microseconds	toUs (double t)
	Convert s (seconds) to std::chrono::microseconds.

static std::string	dateString (time_t t=0)
	Return local time, formatted as 2023-10-14T09:38:47+0200.

static std::string	dateString2 (time_t t=0)
	Return local time, formatted as Sat, 14 Oct 2023 09:38:47.

static std::string	createHashKey (unsigned int length=20)
	Return a random string. More...

Protected Attributes
TaskConfig	the_config

Additional Inherited Members
Protected Member Functions inherited from Task
bool	addConnection (SocketConnection *conn)

bool	addConnected (SocketConnection *conn)

bool	addServer (ServerSocket *conn)
	As Task::addConnected, but with a server connection.

bool	parseListen (const TaskConfig &tc, const std::string &log_label)

virtual bool	tlsSetKey (ServerSocket *conn, const std::string &crt_path, const std::string &key_path, const std::string &password)
	Use SSL certificate for a listening socket.

void	setResult (const std::string &res)

virtual void	setError (const std::string &msg)

virtual void	setTimeout ()

void	setMessage (const std::string &msg)

virtual void	taskFinished (Task *task)

virtual void	taskMessage (Task *task)

virtual void	handleExecution (Task *sender, const std::string &message)
	Callback to execute code on behalf of another Task.

bool	terminated () const
	Return true if task is finished. More...

void	addNewTask (Task task, Task parent=nullptr)
	Insert another Task for execution by the EventLoop.

void	addNewThread (Task task, const std::string &name="ThreadLoop", std::ostream log_file=nullptr, Task *parent=nullptr)
	Run task in a new thread.

void	getMyTasks (std::set< Task * > &tset)
	Add all my child tasks to the given set.

void	abortMyTasks ()
	Terminate all my child tasks.

void	abortTask (Task *task)
	Terminate a task.

void	abortAllTasks ()
	Terminate all tasks and exit the EventLoop.

int	runProcess (const char *const argv[])

virtual void	processFinished (int pid, int wstatus)
	Will be called to notify when an external process has terminated.

WorkerProcess *	createWorker (std::ostream *log_file=nullptr, unsigned int channels=1, unsigned int wno=0)
	Run task returned by this->createWorkerTask in a child process. Return nullptr on failure.

WorkerProcess *	createWorker (const std::string &log_file_name, unsigned int channels=1, unsigned int wno=0)
	Run task returned by this->createWorkerTask in a child process. Return nullptr on failure.

Protected Member Functions inherited from Logger
std::ostream &	errno_log () const
	Write a line of error log after a failed system call has set the global errno to a non-zero value. More...

std::ostream &	err_log () const
	Write a line of error log. More...

std::ostream &	warn_log () const
	Write a line of warning log. More...

std::ostream &	log () const
	Write a line of info log. More...

std::ostream &	dbg_log () const
	Write a line of debug log. More...

Detailed Description

API for HTTP servers.

Member Function Documentation

◆ connAdded()

void WebServerTask::connAdded ( SocketConnection * )

inlineoverridevirtual

This will be called to notify us when a new client socket object has been successfully added to this task. If you need to know that, override this method.

Reimplemented from Task.

Reimplemented in WSBlistener.

◆ connRemoved()

void WebServerTask::connRemoved ( SocketConnection * )

inlineoverridevirtual

This will be called when a client socket object has been removed from this task, just before it is deleted. If you need to know that, override this method.

Reimplemented from Task.

Reimplemented in WSBlistener.

◆ corsHeader()

std::string WebServerTask::corsHeader	(	HttpServerConnection *	conn,
		const std::string &	domain
	)

static

Return Access-Control-Allow-Origin header if the conn's current request originates from domain (or a subdomain to it), otherwise return "".

◆ newClient()

SocketConnection * WebServerTask::newClient	(	int	,
		const char *	,
		uint16_t	,
		ServerSocket *
	)

finalvirtual

Ignore this unless the task is a server task. If a new remote connection is made through any ServerSocket object owned by us, the client socket, ip address and port number will be passed to the below method. Override it to create and return an object of a subclass to SocketConnection, otherwise the client socket will be closed. The object will be owned by the implementation and will be deleted when the connection has been closed. You must create the object with new.

Reimplemented from Task.

◆ newGetRequest()

virtual HttpState WebServerTask::newGetRequest	(	HttpServerConnection *	,
		const std::string &
	)

inlinevirtual

When you overload this, call sendHttpResponse and return WAITING_FOR_REQUEST (or CLOSE), or call sendHttpResponseHeader and return SENDING_RESPONSE. In the latter case, your overloaded sendResponseData method will be called regularly until all is sent.

◆ newWorkerChannel()

void WebServerTask::newWorkerChannel	(	SocketReceiver *	,
		unsigned int
	)

overridevirtual

Called during startup of worker process, once for each SocketReceiver object. Will be called before serverAdded with the same SocketReceiver. Overload this if your worker process has two or more SocketReceiver objects with different confguration (i.e. different SSL keys).

Reimplemented from Task.

◆ newWsRequest()

bool WebServerTask::newWsRequest	(	HttpServerConnection *	conn,
		const std::string &	uri
	)

virtual

Request from client for a websocket upgrade.

Return true to accept, false to close.

Reimplemented in WSBlistener.

◆ partialPostData()

bool WebServerTask::partialPostData	(	HttpServerConnection *	conn,
		const char *	buffer,
		size_t	len
	)

virtual

Retrieve part of a post message from client.

Return true to continue, false to close the connection.

◆ sendResponseData()

virtual size_t WebServerTask::sendResponseData	(	HttpServerConnection *	,
		size_t
	)

inlinevirtual

Overload this if you really have to take control over how the response is sent. Send up to bytes_left bytes through conn, return exactly the number of bytes written. To get it correct, you should just do

return conn->sendData(...)

◆ setCookie()

std::string WebServerTask::setCookie	(	const std::string &	name,
		const std::string &	val,
		long	expiry = `0`,
		const std::string &	path = `"/"`,
		std::string	domain = `""`
	)		const

Return a string that may be inserted into the HTTP response headers.

Let expiry be 0 for a session cookie, < 0 to delete cookie, otherwise expiry should be the cookie's max-time in seconds. If domain is empty, the cookie_domain config parameter will be used. Example:

conn->sendHttpResponse(headers("200 OK",
                               setCookie("lang", "en", 86400)),

◆ setFixedHeaders()

void WebServerTask::setFixedHeaders ( const std::string & hdr )

inline

One or more HTTP response header lines that always should be sent.

Terminate each line with \r
.

◆ start()

double WebServerTask::start ( )

overridevirtual

When the EventLoop starts executing a task, it will call its start method. All non-trivial initialization, e.g. creating new socket connections, should be performed in the start method.

If the task needs a timer, the start method must return the number of seconds until timerEvent should be called, or <= 0 if you don't want it to be called.

Reimplemented from Task.

◆ wsHandshakeFinished()

void WebServerTask::wsHandshakeFinished	(	HttpServerConnection *	conn,
		const std::string &	uri
	)

virtual

If you want to send data immediately after a websocket connection has been established (i.e. before the client has asked for anything), call conn->notifyWsHandshake() in the newWsRequest method; then the below method will be called after the handshake:

The documentation for this class was generated from the following files:

src/http/webservertask.h
src/http/webservertask.cpp

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ connAdded()

◆ connRemoved()

◆ corsHeader()

◆ newClient()

◆ newGetRequest()

◆ newWorkerChannel()

◆ newWsRequest()

◆ partialPostData()

◆ sendResponseData()

◆ setCookie()

◆ setFixedHeaders()

◆ start()

◆ wsHandshakeFinished()
